1080p AHD Quad Control pole z funkcją nagrywania

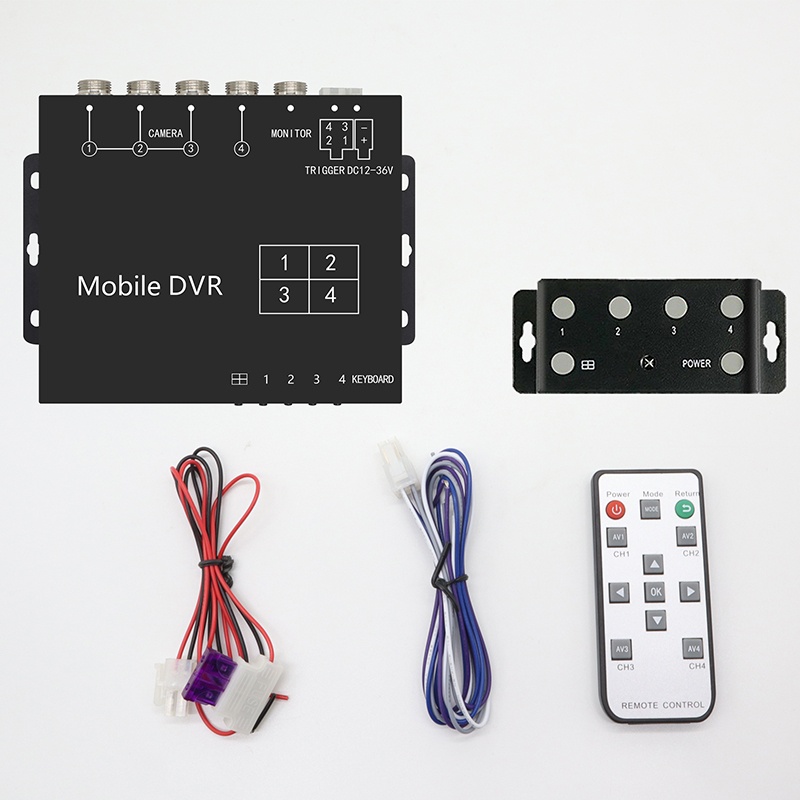

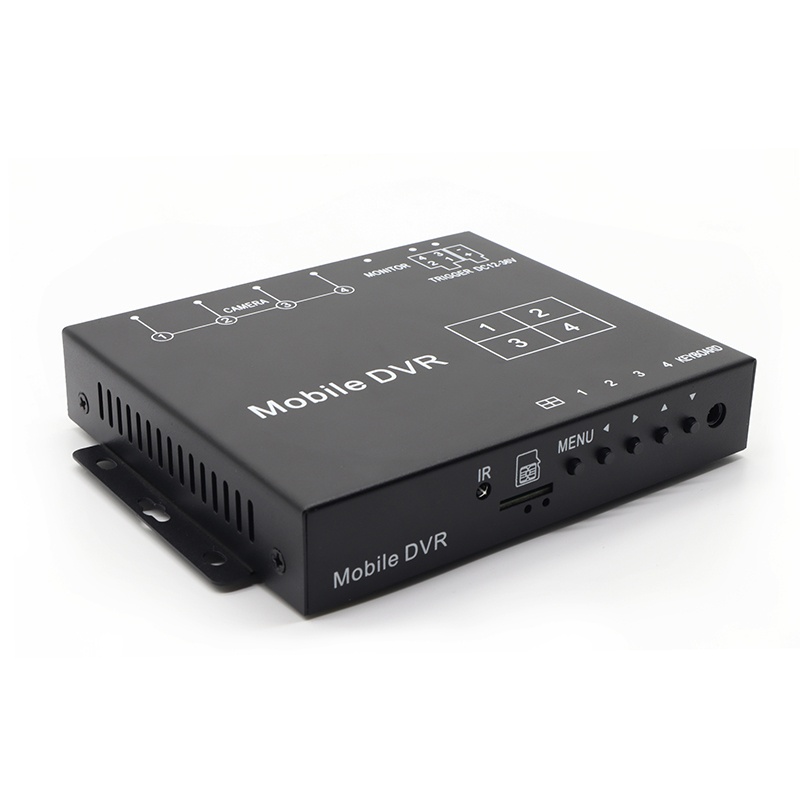

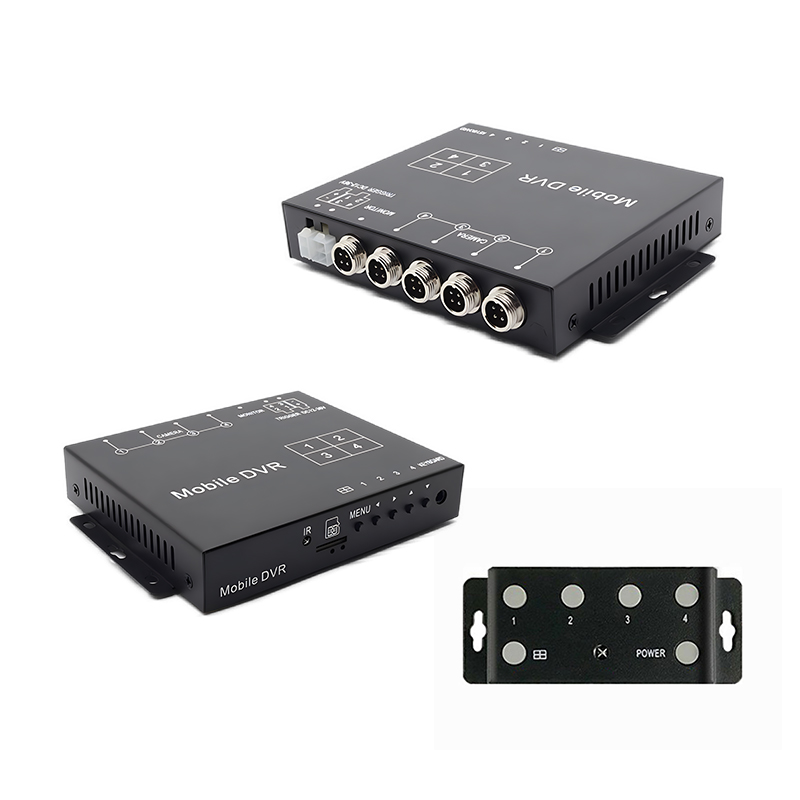

Upgrade your vehicle surveillance with the compact 1080P AHD Quad Split Control Box With Recording Function. This all-in-one solution combines a 4-channel video splitter and DVR, supporting 1080P/720P cameras and 512GB recording.

Features:

• Support 4CH 1080P/720P/D1 camera input and automatically segment the image
• 1080P AHD Quad Split Control Box With Recording Function support MAX 512G TF card stroage.
• CVBS/AHD1080P Output Optional (Aviation head). AHD1080P output backward compatibility(720P/1080P 25/30fps)
• Can be adjusted independently for brightness, Contrast, saturation, hue and sharpness of each channel
• 4CH camera can be triggered separately and displayed in full screen automatically
• The video output can be set TOP/Bottom/Left and Right deflate
• Output power to cameras and monitor (12V)
• Each image normal/mirror function can be set separately
• Box working voltage :9V-32V
• High and low voltage and overload protection

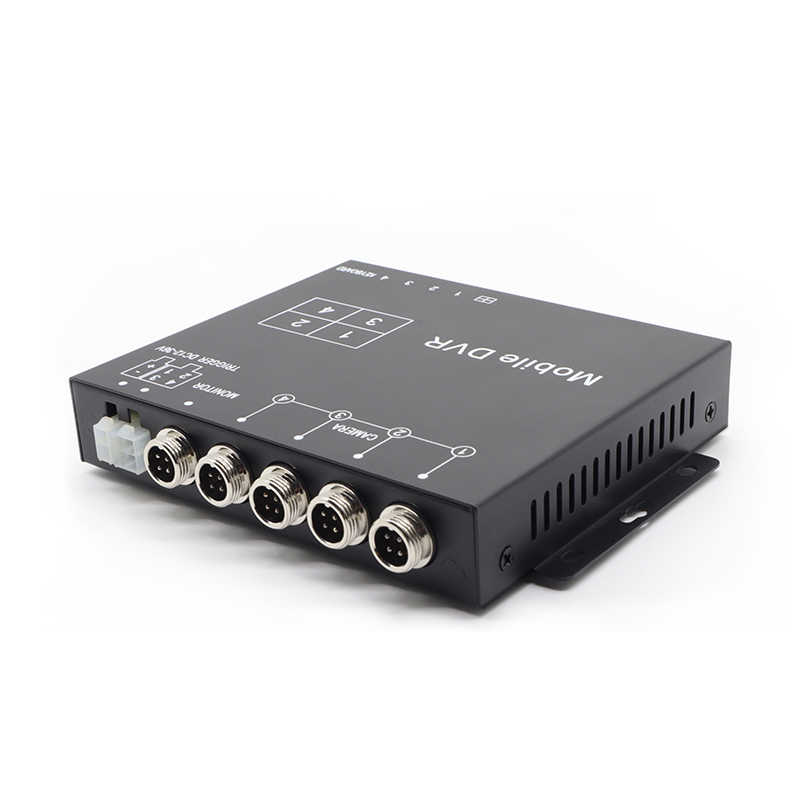

• Video output connector: 4PIN aviation
• Support audio output

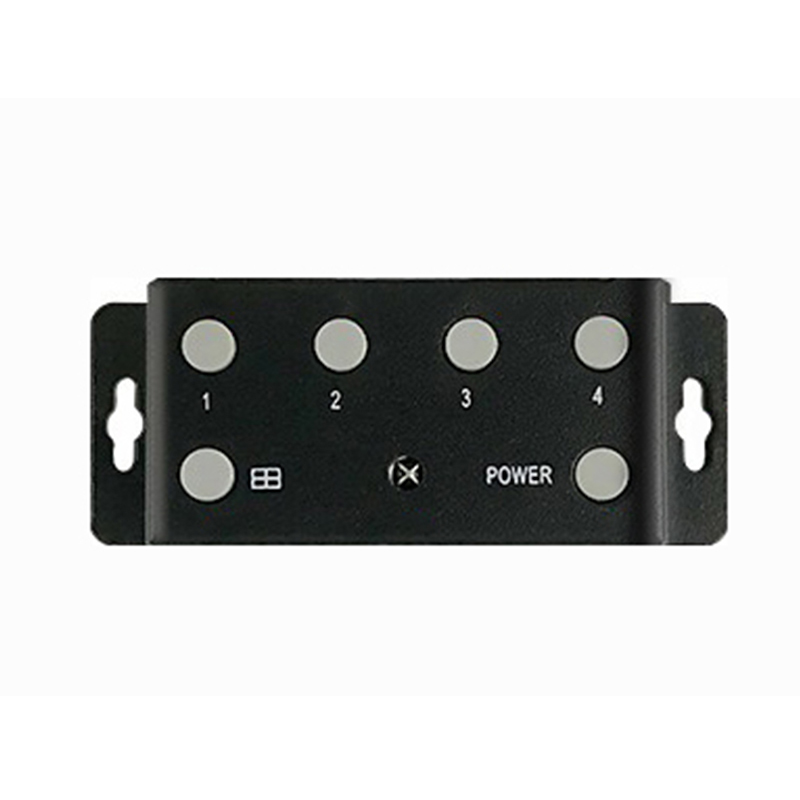

• Can choose image of any channel of 4 cameras by trigger wire or hand
• After cancelling trigger. the image is delayed for 2 sec. and returns to the state before the trigger
• Support PAL/NTSC  video format
• Dimension: 155*87*32mm

If you are interested in 1080P AHD Quad Split Control Box With Recording Function, please feel free to inquiry.
